Unknown board ID 'm5stack-stamps3'

[Ilkka]

Hi, I try to make a new esp-idf project for Stamp S3. But it comes the following error:

[felmue]

Hello @Ilkka

creating such a project worked for me - this is the platformio.ini content that was created:

[env:m5stack-stamps3]
platform = espressif32
board = m5stack-stamps3
framework = espidf

So the board m5stack-stamps3 is available.

• Have you checked all components are up-to-date?
• Have you checked there is enough free space on the disk?

Thanks
Felix

[Ilkka]

Hi Felix,

I am not sure if everything is OK but I reinstalled esp-idf framework again.

It works with some other Esp32-S3 boards.

This is my platformio.ini:

[env:m5stack-stamps3]
platform = espressif32
board = m5stack-stamps3
framework = espidf

And here some messages when trying to compile:

• list itemExecuting task: C:\Users\XXX.platformio\penv\Scripts\platformio.exe run --environment m5stack-stamps3

Processing m5stack-stamps3 (platform: espressif32; board: m5stack-stamps3; framework: espidf)
Error: Unknown board ID 'm5stack-stamps3'

• The terminal process "C:\Users\XXX.platformio\penv\Scripts\platformio.exe 'run', '--environment', 'm5stack-stamps3'" terminated with exit code: 1.

• list itemTerminal will be reused by tasks, press any key to close it.

[felmue]

Hello @Ilkka

hmm, not sure what's going wrong here. Maybe there is a difference between different computer platforms? You seem to be on Windows and I ran my test on Linux and I do not have access to a Windows machine. Sorry.

Thanks
Felix

[Ilkka]

Hi Felix,

Thank your for your help. The most important is to hear that your system is working. I should have a Linux based development environment too.. I will make it.

BR, Ilkka

[Ilkka]

Hi, I just tested quickly.. AtomS3 is OK; the project can be created and compiled.

[env:m5stack-atoms3]
platform = espressif32
board = m5stack-atoms3
framework = espidf

[Ilkka]

Hi, this issue was solved. Easy and logical way:

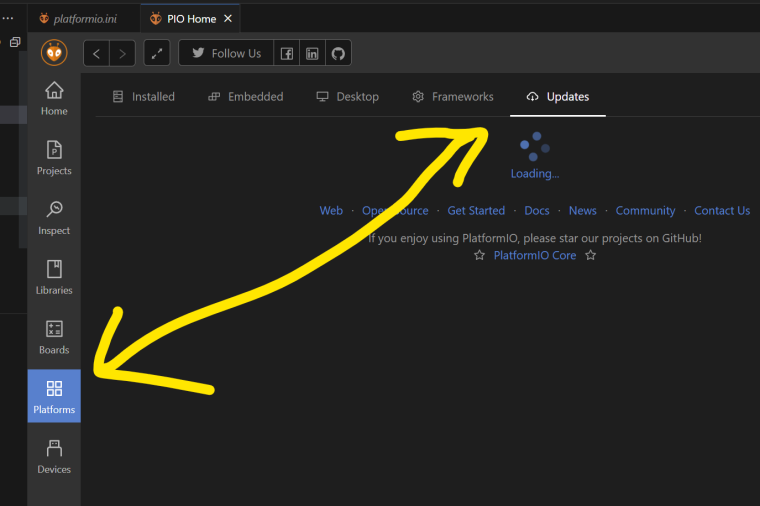

VScode > PlantformIO home > plantforms > update
