M5Stack - Simple Applications Menu + some APPs
-
Fast and dirty minimalist application menu for M5Stack.
Integrated applications: DHT12 - Temperature / Humidity Stopwatch I2C scanner Bluetooth BLE Beacon Simulator (iBeacon, Eddystone TLM + URL, ALTBeacon)
Settings: display backlight
Other: sleep mode
I will be glad when you share the further development, I will continuously add other applications and options.
https://github.com/tomsuch/M5Stack-SAM
https://www.youtube.com/watch?v=I0mzvDC6M1c
-
@tomsuch
Wow ! Nice menu system. Exactly just what was needed. Look forward to seeing how it develops over time... -
This post is deleted! -
Hi @TomSuch , I like your SAM, have cloned it and extend it a bit.

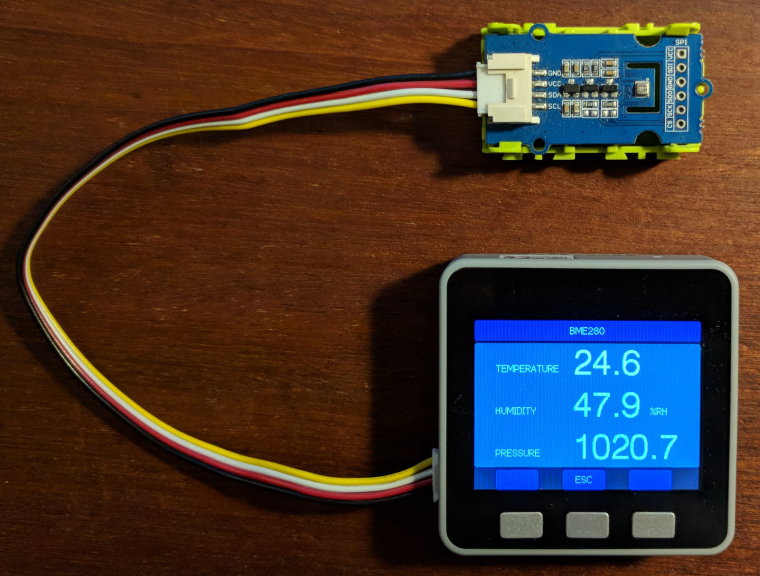

I have add an APP - appBME280, to read a Grove - Barometer Sensor.
M5Stack-SAM ext. version
-
@sunwukong Super, good work. Thank you
-
Added QR-Code APP
-
Added Serial Interface for remote control:
Serial control at 115200 8N1 and NL&CR termination
bright [0-255] - display bright
EXAMPLE: bright 128
clr - clear display
sleep - power sleep, wakeup on BTN_B
qrc [text] - show QRCODE with text
EXAMPLE: qrc www.google.comSend iBeacone message
ibeacon [major code 0-65535] [minor code 0-65535] [power 0-255]
EXAMPLE: ibeacon 1024 2048 50Send Eddystone TLM message
eddystonetlm [voltage 0-65535] [temperature 0-65535] [pocket cound 0-4294967295] [second from up 0-4294967295]
EXAMPLE: eddystonetlm 100 200 300 400Send Eddystone URL message
eddystoneurl [prefix 0-3] [power 0-255] [url]
EXAMPLE: eddystoneurl 1 1 google.com
PREFIXES:
0 http://www.
1 https://www.
2 http://
3 https:// -
@jimit Thank you for the positive bond ...
-
@tomsuch
No problem Tom. Very much deserved !Have got a wifi scan working with this under the Apps menu... but need to more spend a bit more time to get the screen output layout right... so each scan displays from the same line each time.
-
Awesome, i think we should do some offical support about this good idea.
-
@m5stack Thank you. I'd like to create something like a Swiss knife for makers.I like M5Stack and I'd like to create applications like a simple pocket oscilloscope, multimeter, I2C / SPI sniffer, signal generator, and so on. I think M5Stack is a platform with a lot of potential. Regards..
-
New version:
Added:
-
APP - GY-512 (MPU6050) - gyro/accelerometer
-
APP - variable speed Serial PASS-THRU USB<->UART2
-
SYSTEM - System Informatins (CPU Speed, Flash Size, Flash SPEED, SDK Version .......)
-
Serial Commands - WiFiScan, I2CScan
-
-
@TomSuch I got your mind, and similar to me, i really hope it like a swiss knife. useful and meaningful.
-
I get errors on all
[code]
#pragma mark
[/code]Will comment out and try again
-
@kryten Please specify the error. Arduino version. Take PrintScreen.
Do you have installed M5.libraries ? ESP32 libraries ? -
@tomsuch 在 M5Stack - Simple Applications Menu + some APPs ä¸è¯´ï¼š
APP - GY-512
very nice system!
APP - GY-512 works also with built-in MPU9250 :)Can You modify TIM MEASUREMENT APP?
S/S button should 1.START->2.STOP->3.START without reset between 2 and 3 step...(something like continous measurement with pause). For reset value we have RES button -
@reaper7 Hi, thanks for the subject. I edited the application of the stopwatch and is already out. Regards...
-
++
-
@jimit Hi, good work. But I did not find the code on your git ...
-
@tomsuch
Oops... sorry bout that. Have added them now....
